HEDP (1-Hydroxyethylidene-1,1-diphosphonic Acid): The Versatile Chelating Agent for Global Industrial Applications

What is HEDP?

HEDP (1-Hydroxyethylidene-1,1-diphosphonic acid), also known as Etidronic Acid, is a highly effective organic phosphonate chelating agent with the molecular formula C₂H₈O₇P₂ and CAS number 2809-21-4. As a member of the phosphonate family, HEDP functions as an excellent water hardness stabilizer, scale inhibitor, and corrosion inhibitor across numerous industrial applications.

What truly sets HEDP apart from other chelating agents is its exceptional chemical stability. Even at temperatures reaching 250°C, HEDP maintains its scale and corrosion inhibition properties. Additionally, it remains stable under high pH conditions, resists hydrolysis, and does not decompose under ordinary light and heat conditions. Consequently, this thermal and hydrolytic stability makes HEDP the preferred choice for demanding industrial environments where other chemicals would quickly degrade.

Key Properties of HEDP

HEDP possesses multifunctional properties that make it indispensable in modern industrial chemistry:

• Strong Chelation: HEDP forms stable complexes with metal ions, particularly calcium (Ca²⁺), magnesium (Mg²⁺), iron (Fe³⁺), copper (Cu²⁺), and zinc (Zn²⁺)

• Threshold Inhibition: At substoichiometric concentrations, HEDP effectively prevents crystal growth and scale formation

• Corrosion Protection: Forms protective films on metal surfaces to inhibit corrosion

• Dispersion Properties: Prevents contaminant deposition and keeps particles suspended

• Chlorine Stability: Demonstrates strong tolerance to chlorine oxidation compared to other organophosphonates

The unique molecular structure of HEDP allows it to form six-membered chelating rings with calcium ions, thereby creating stable complexes that prevent calcium carbonate and calcium sulfate scale formation. Through this “hexa-element chelating complex” mechanism, it provides superior scale inhibition even in challenging water conditions.

Applications Across Industries

1. Water Treatment

HEDP is widely recognized as one of the most effective scale and corrosion inhibitors for industrial water systems. Specifically, it finds extensive application in:

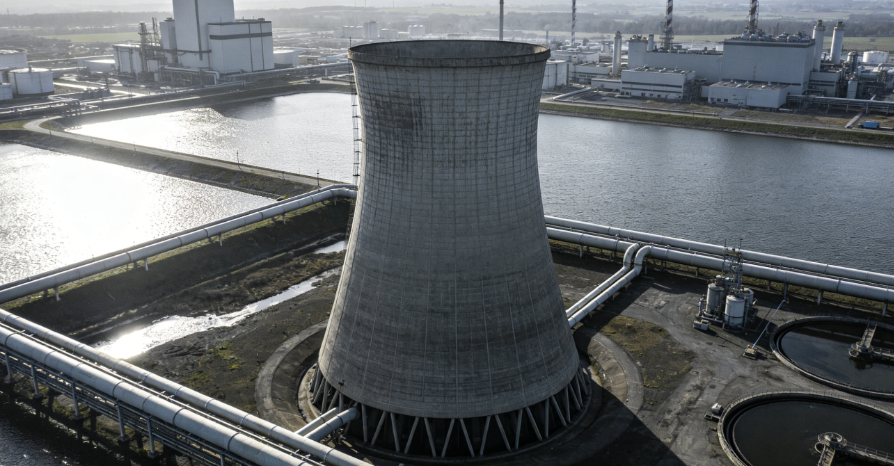

• Cooling Water Systems: Prevents scale formation and corrosion in recirculating cooling towers across power plants, chemical facilities, refineries, and steel mills

• Boiler Water Treatment: Protects low-pressure boilers from scale deposition and metal corrosion, consequently improving energy efficiency and equipment lifespan

• Oilfield Applications: Controls scale in oilfield water injection systems and downhole equipment, thereby maintaining production efficiency

• Reverse Osmosis Systems: Formulated into RO membrane antiscalants to prevent membrane fouling

• Desalination Plants: Used in thermal desalination processes to inhibit scale formation

2. Detergents and Cleaning Products

HEDP has largely replaced EDTA in detergent formulations, primarily due to its superior environmental profile and multifunctionality. In household and industrial cleaning applications, HEDP serves multiple critical functions:

For example, it acts as a chelating agent that binds hardness ions (Ca²⁺, Mg²⁺) to prevent detergent precipitation in hard water. Moreover, it functions as a scale inhibitor that prevents encrustation on fabrics during washing. As a dispersant, it keeps soil particles suspended and prevents redeposition. Additionally, it serves as a stain removal enhancer with antimicrobial and bleaching properties.

3. Textile Industry

In textile processing, HEDP significantly improves product quality and process efficiency through several key functions:

As a peroxide stabilizer, it stabilizes hydrogen peroxide in bleaching baths, ensuring consistent bleaching results and preventing fiber damage. When used as a dye-fixing agent, it enhances dye uptake and improves color fastness by complexing metal ions that would otherwise interfere with dyeing. Furthermore, through metal ion control, it removes trace metals that catalyze peroxide decomposition and cause uneven dyeing.

4. Electroplating Industry

HEDP enables environmentally friendly electroplating processes in several important ways:

In non-cyanide electroplating, it serves as a chelating agent for copper plating baths, enabling direct copper deposition on steel substrates without toxic cyanide. For surface preparation, it dissolves oxidized materials on metal surfaces, consequently creating clean, activated surfaces for plating. Through these mechanisms, it helps produce smooth, uniform, and well-adhered coatings in electroplating operations.

5. Additional Applications

Beyond these primary applications, HEDP finds use in numerous other industries:

• Metal Cleaning: Removes rust and scale from metal surfaces while simultaneously preventing subsequent corrosion

• Construction Materials: Modifies rheology, liquefies materials, and delays curing in construction applications

• Paper Industry: Binds heavy metals during paper bleaching and demineralization processes

• Cosmetics and Personal Care: Stabilizes hair dyes and bleaches, enhances cleansing effects in soaps and shampoos, and improves pigment dispersion in sunscreens

• Sugar Processing: Prevents scale formation during sugar refining operations

Synergistic Effects

One of HEDP’s most valuable characteristics is its ability to work synergistically with other water treatment chemicals. When combined with polycarboxylic acids (such as PBTCA, HPMA, AA/AMPS), it significantly enhances overall scale inhibition performance. Similarly, when paired with zinc salts, it improves corrosion protection through enhanced film formation. With molybdate inhibitors, it provides comprehensive corrosion control in multi-metal systems.

This synergistic behavior allows formulators to create highly effective, cost-efficient treatment programs tailored to specific water chemistry and system requirements.

Environmental and Safety Profile

HEDP represents a more environmentally responsible choice compared to traditional alternatives. It is readily biodegradable under environmental conditions and demonstrates a lower ecotoxicity profile than EDTA and other phosphonate competitors. Importantly, it does not contain heavy metals or harmful components.

Safety Handling Guidelines:
Because HEDP is acidic and corrosive to eyes, proper safety precautions are essential. Operators should wear appropriate protective equipment, including chemical goggles, rubber gloves, and protective clothing. In case of skin or eye contact, flush immediately with plenty of water. For storage, keep containers in cool, dry, well-ventilated areas away from strong oxidizing agents. Additionally, always keep containers tightly sealed and upright to prevent leakage.

Why Choose Hainan Sincere Industries for HEDP?

With over 20 years of experience in the chemical industry, Hainan Sincere Industries Co., Ltd. has established itself as a trusted supplier of high-quality HEDP to customers worldwide.

Our Advantages:

✅ ISO 9001 Certified Quality System: Through rigorous quality control, we ensure consistent product performance batch after batch

✅ Advanced Manufacturing: We utilize state-of-the-art production facilities with precise process control

✅ Flexible Packaging Options: We offer 25kg drums, 200kg drums, 1000kg IBC tanks, and customized packaging solutions

✅ Global Export Experience: We serve customers across America, Europe, Middle East, Southeast Asia, and Africa

✅ Technical Support: Our expert team provides formulation assistance and application guidance

✅ Stable Supply Chain: Through reliable production capacity, we ensure on-time delivery

Contact Us

Ready to optimize your industrial processes with high-quality HEDP? Contact Hainan Sincere Industries today for competitive pricing, free samples, and technical consultation.
